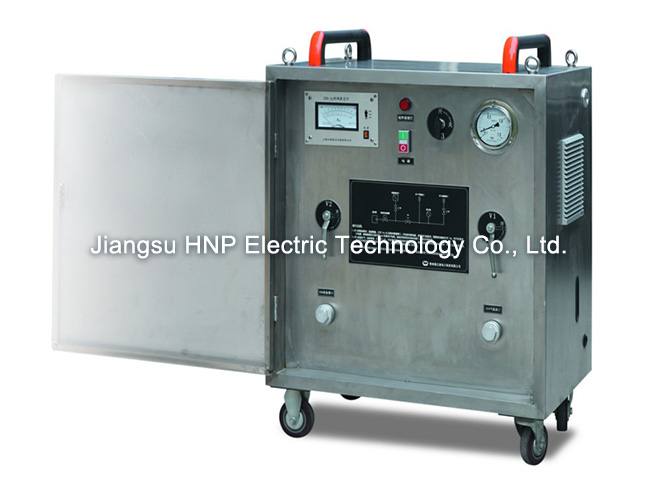

HNPCC-100 Gas Vacuumizing Device

Overview

The HNPCC-100 vacuumizing device is mainly used for vacuumizing measurement etc. during installation, operation and maintenance of porcelain column type SF₆ circuit breakers, transformers and other SF₆electric appliances. The HNPCC100 is a compact SF₆ gas filling and vacuumizing device, which is installed on a very firm metal frame, and can travel freely even on the gravel road with four pneumatic tires. The SF₆gas filling and vacuumizing device contains: vacuum pump, vacuum gauge, electromagnetic vacuum device (anti-oil return V1), regulating valve, gas piping, and valves and instrumentation control parts necessary for maintenance of SF₆ circuit breakers.

Main Features

l Fast vacuumizing and optional vacuumizing speed

l Easy to move on site with heavy duty pneumatic tires

l With gas filling branch, no need to remove the piping frequently for gas filling

l Digital Pirani vacuum gauge

l Reasonable and firm structure, and long service life

l Effective anti-oil return with electromagnetic vacuum device

Technical Indexes
